Descripción

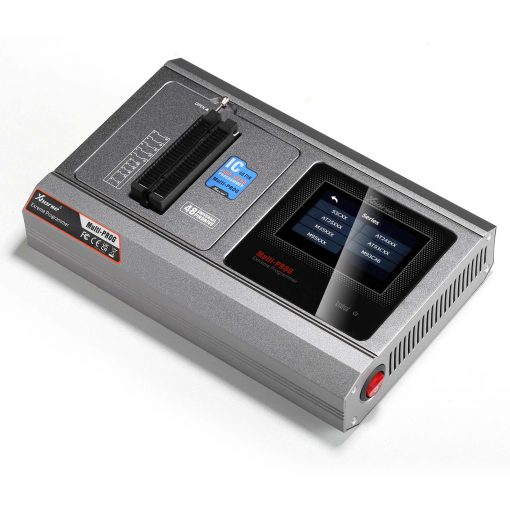

Dispositivo programador VVDI MULTI PROG
Modelos ECU que se pueden leer y escribir en BANCO (BENCH):
Volkswagen:
– SIMOS PCR2.1, EDC17c64
– BOSCH: MG1CA811
– BOSCH: MED17.1.6, MED17.1.21, MED17.1.61, MED17.5, MED17.5.1, MED17.5.2, MED17.5.5_TC1766, MED17.5.5_TC1767, MED17.5.20, MED17.5.21, MED17.5.25
– BOSCH: EDC17C46, EDC17C74, EDC17CP24, EDC17CP44, EDC17CP54, EDC17U01, EDC17U05
– CONTINENTAL: SIMOS8.6x, SIMOS8.3x, SIMOS8.4x, SIMOS8.5x
BMW:
– CONTINENTAL: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90
– BOSCH: MD1CP002_SPC5777, MG1CS003_SPC5777 (B48, B58), MG1CS201_TC298TP(B38, B48, B58), MD1CS001_TC298TP, MG1CS024_TC298TP(B48, B58), MD1CP032_TC299
– BOSCH: EDC17CP09_Fxx_TC1796, EDC17C50_Exx, EDC17CP45_Exx, EDC17C06, EDC17C56
– BOSCH: ME17.2.1
– BOSCH: MEVD17.2.3, MEVD17.2_Fxx, MEVD17.2.4_Fxx(N20), MEVD17.2.6_Fxx, MEVD17.2.9_Exx, MEVD17.2.G, MEVD17.2.G (N55), MEVD17.2.H, MEVD17.2.6_Fxx, MEVD17.2.P_Fxx, MEVD17.2.K
– BOSCH: MEV17.2_TC1766, MEV17.2_TC1767, MEV17.2_TC1796, MEV17.2.1
Mercedes Benz:
– CONTINENTAL: SIM271DE, SIM271KE
– BOSCH: ME17.7, MED17.7.3.1, MED17.7.1, MED17.7.2, MED17.7.3, ME17.7.8
– BOSCH: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60
– BOSCH: CRD3x.x_TC1793, CRD3x.x_TC1797
– BOSCH: MD1CP001-SPC5777, MG1CP002_SPC5777, MD1CS006_TC298TP
GM:
– DELPHI: DCM3.7AP
– DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98
NISSAN:
– DENSO: 23740-3Nxxx_Gen1 SH72531
– BOSCH: EDC17C84
HYUNDAI / KIA:
– BOSCH: ME17.9.11, ME17.9.11.1
– BOSCH: EDC17C53
– BOSCH: MEG17.9.12_ECU
FORD:
– BOSCH: EDC17C70, EDC17CP65
– BOSCH: ME17.0.3, ME17.8.5
VOLVO:
– BOSCH: EDC17CP48, EDC17CP48_ver2, EDC17CP22
OTROS:
– AM_ME17.8.5,DOO_ME17.8.5
– BOSCH: MG1CA007, ME17.8.8_TC1728, ME17.8.8_TC1728_HW2, ME17.8.8_TC1767, ME17.8.31, ME17.9.52
– BOSCH: EDC17C55, EDC17C10, EDC17C10_TC1796, EDC17C10_TC1797, EDC17CP42, EDC17CP14, EDC17c81
– BOSCH: MEVD17.8.4
– BOSCH: MED17.8.10_TC1728, MED17.8.10_TC1728_Hw2,MED17.8.10_TC1767
– BOSCH: MD1CS018, MG1CS026_SPC58, MG1CS032, MG1CS163, MD1CS012, MD1CS089, MD1CS069, MD1CS005_TC298TP, MG1CS015_TC277TP, MG1CS016_TC275TP, MG1CS017_TC277TP, MG1CS018, MG1CS019, MG1CS088
– CONTINENTAL: SID208, SID209, SID211, SID807EVO
– DENSO: KH, ZY, SH70xx_275xxx-xxx
Modelos ECU que se pueden leer y escribir en BOOT:
Volkswagen:
– SIMOS PCR2.1, EDC17c64
– BOSCH: MED17.1.6, MED17.1.21, MED17.1.61, MED17.5, MED17.5.1, MED17.5.2, MED17.5.5_TC1766, MED17.5.5_TC1767, MED17.5.20, MED17.5.21, MED17.5.25
– BOSCH: EDC17C46, EDC17C74, EDC17CP24, EDC17CP44, EDC17CP54, EDC17U01, EDC17U05
– BOSCH: ESIMOS8.3x, SIMOS8.4x, SIMOS8.5x, SIMOS8.6x
BMW:
– CONTINENTAL: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90
– BOSCH: EDC17CP09_Fxx_TC1796, EDC17C50_Exx, EDC17CP45_Exx, EDC17C06, EDC17C56
– BOSCH: ME17.2.1
– BOSCH: MEVD17.2.3,MEVD17.2_Fxx, MEVD17.2.4_Fxx(N20), MEVD17.2.6_Fxx, MEVD17.2.9_Exx, MEVD17.2.G, MEVD17.2.G(N55), MEVD17.2.H, MEVD17.2.6_Fxx, MEVD17.2.P_Fxx, MEVD17.2.K
– BOSCH: MEV17.2_TC1766, MEV17.2_TC1767, MEV17.2_TC1796, MEV17.2.1
Mercedes Benz:
– CONTINENTAL: SIM271DE,SIM271KE
– BOSCH: ME17.7, MED17.7.3.1, MED17.7.1, MED17.7.2, MED17.7.3, ME17.7.8
– BOSCH: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60
– DELPHI: CRD2.x_MPC556x
GM:
– DELPHI: MT80,MT80.1
– DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98
NISSAN:
– BOSCH: EDC17C84
HYUNDAI / KIA:
– DELPHI: MT86
– DELCO: DCM6.2AP
OTROS:
– CONTINENTAL: SID208, SID209, SID211, SID807EVO, SID310
– SDI21.1,SDI21.2,SDI21.3
– BOSCH: ME17.3.0
– MARELLI: 8DF, MM10JA
Modelos TUC que se pueden leer y escribir en BENCH:
Volkswagen:
– DL382, VL381, DL501 Gen1, DL501 Gen2, DQ200Dxx, DQ200-G2, DQ200-G2_PQ, DQ200-MQB, DQ250-MQB, DQ250 Exx/Fxx
BMW:
– GETRAG DKG 436 Gen1, GETRAG DKG 436 Gen2
MERCEDES BENZ:
– VGS-FDCT, VGS2-FCVT, VGS2-FDCT
FORD:
– ETRAG MPS6GETRAG
– DPS6, DC4
Modelos TUC que se pueden leer y escribir en BOOT:
FORD:
– DPS6, DC4
OTROS:
– ZF 9HP
Información adicional
| Comunicación vehículo | |
|---|---|
| Funciones | Adaptación, Anulación, Clonación, Desbloqueo, Diagnosis, EEPROM, Generación/Precodificación, Inmo Off, Intervención/Codificación |
| Marca | Audi, Bentley, BMW, Citroen, Grupo VAG, Maserati, Mini, Peugeot, Porsche, Seat, Skoda, Volkswagen |
| Proximidad | |
| Perfil | |
| Tecnología transponder | ID44, ID46, ID46 (PCF7936), ID46 (PCF7941), ID46 (PCF7942), ID46 (PCF7945), ID46 (PCF7952), ID48, ID48 AES, ID48 MQB, ID48 VAG CAN (TP22), ID48 VAG CAN (TP23), ID48 VAG CAN (TP24), ID48 VAG CAN (TP25), ID8E |
Descargas
Software dispositivo VVDI2 V.7.3.5
Última versión Archivo Configuración VVDI2 1.0.0
